Process Specialties is located just off highway 580 in the airport industrial area in Tracy California. We are in a 25,000 sq. ft. facility, a stones throw from the Tracy Municipal Airport, 15 minutes from Lawrence Livermore / Sandia National Labs, and a short 45-60 minute all-freeway drive from the greater Silicon Valley.
Bulk Nitrogen and Oxygen pad Process Specialties building rear

Clean Room One



Clean Room One is a 3,000 square foot Class 100 / ISO 5 facility built in 1988. It is well maintained and consistently over the years we have been able to achieve particle counts below class 100. Most visitors to our facility are impressed with how new the fab looks. Over the years we have modified and upgraded both the facility and its equipment to meet our clients changing processing needs. In the 25 years since it's completion this clean room and the Engineers and Technicians that work in it, have successfully processed millions of 75mm- 200mm wafers. Above is a view into the gowning area.



Incoming  Racks

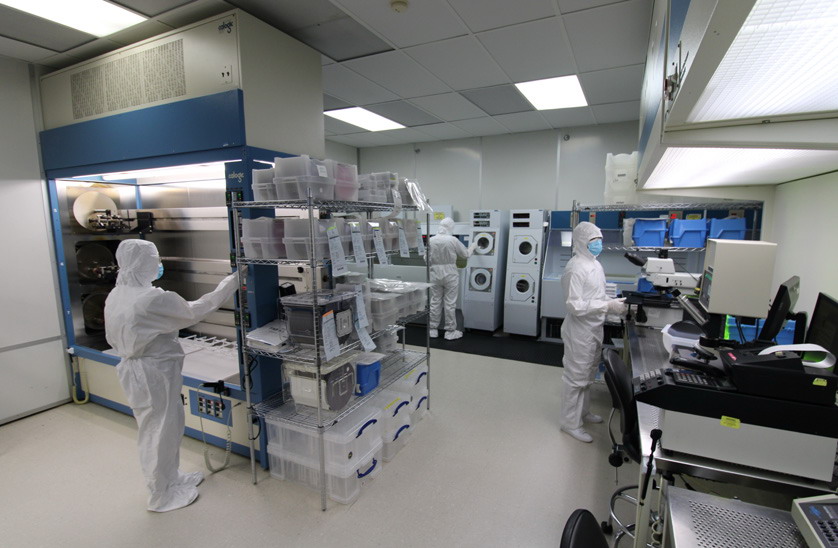

Here we are looking at the Incoming material disposition racks

Wafers arrive at our facility by our Truck, UPS, Fed-Ex, DHL or other shipping company. Next they are counted, inspected for damage and then barcoded, scanned and matched with the proper paperwork. After this procedure a Order Confirmation is created using information from the Clients Purchase Order. Next the Process Order Confirmation is e-mailed or faxed to the client, then the client has a 24 hour period to correct any mistakes in the process recipe. Only then are process runcards created and the wafers placed in a coded position in the Queue by Production Control.

This whole process usually takes from 24-48 hours and with <.1% mis-processed wafers out of over 250,000 processed last year, we think the extra time and checks are well worth it!





One of the Photolithography areas in Clean Room One

 In this area we are doing larger geometry work on 100mm through 300mm wafers. The Canon 501's and 600FA's are capable of imaging and aligning layers with CD's down to about 2.0um.

You can see a 300mm OAI Proximity tool in the center of the tunnel. This tool is capable of 4um+ geometries and can image the entire wafer in a single exposure. Making this tool very useful for 300mm lithography jobs that require full wafer imaging.

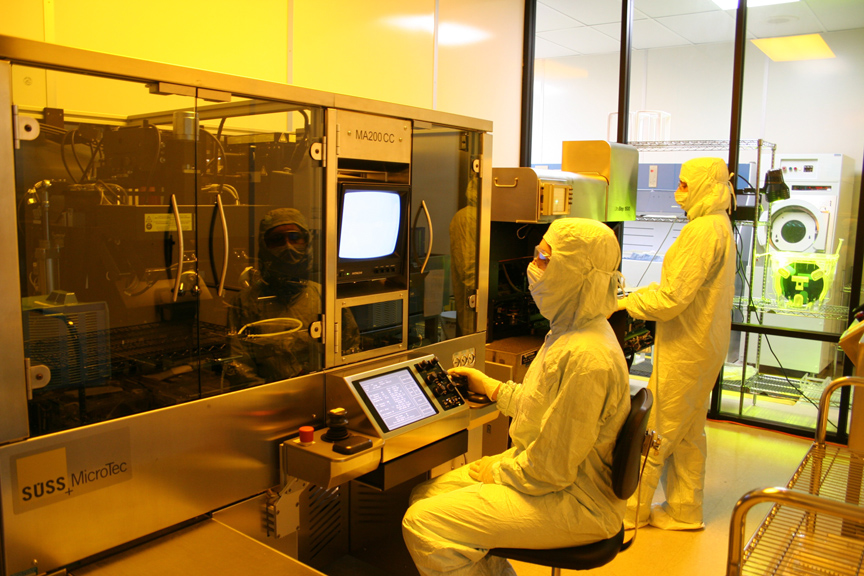

In an adjoining bay is a glass enclosed Class 10 / ISO 3 area with a full HEPA ceiling. In this second Photolithography area we are running an Ultratech  Stepper and a Suss MA 200CC. The Ultratech is capable of stepping 6 inch wafers with geometries down to .7um. The Suss is used for 6 and 8 inch proximity lithography.

East window Fab One





All wafers are tracked and logged through every step in the process using bar code scanners and a computerized logging system. This system is also designed to generate all the process data we need for our SPC charts and reports. In addition we can call up and duplicate custom processes we have ran for our customers, years after their wafers were first processed through our Fab areas.

Furnace load station

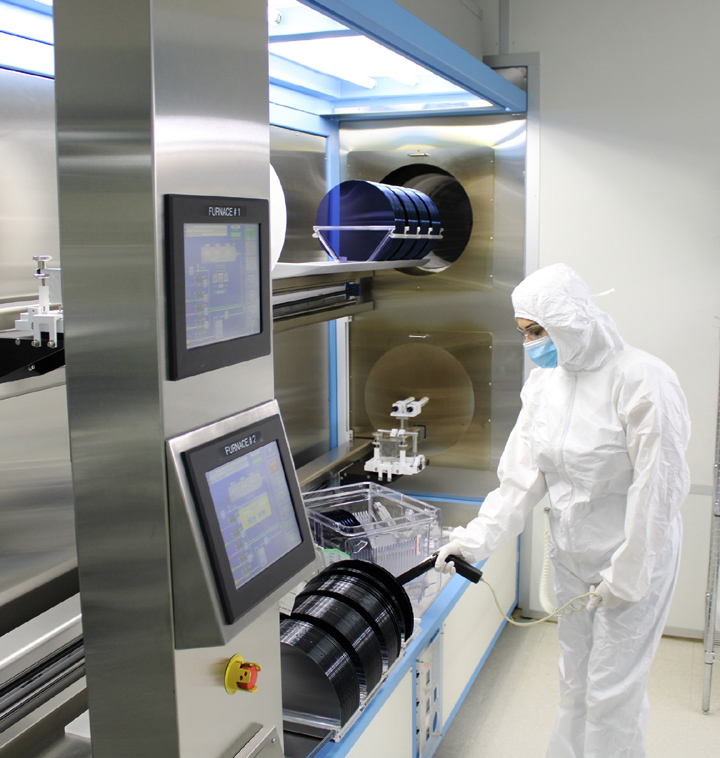

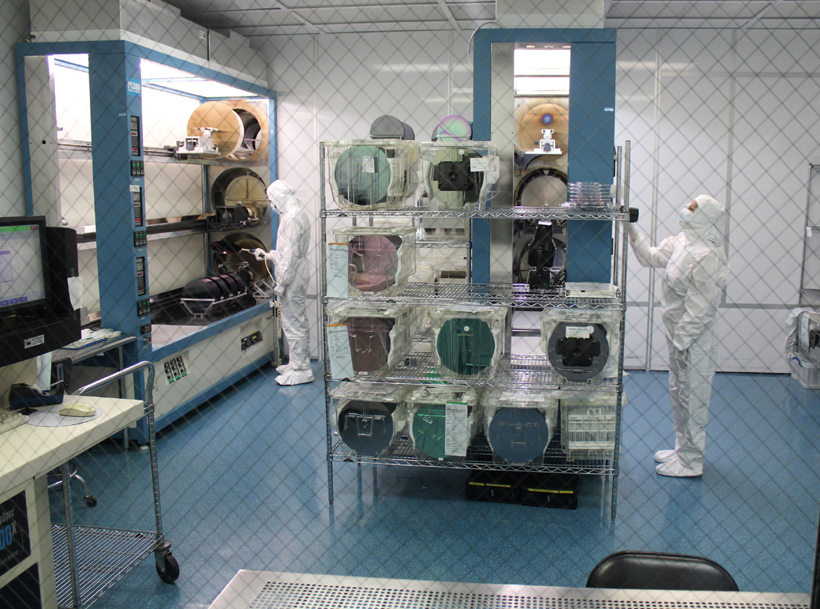

One of the 200mm diffusion furnace load stations

Note all the diffusion furnaces at Process Specialties are cantilever load and auto push pull. This means low particle thin films and no warped wafers.

East service isle Fab one







As you can see even the service aisles around the Clean Room One area are spotless. Above left we see some of the gas distribution lockers. We should point out that we use only the purest cylinder gases available, from our vendor Scott Specialty Gases.




Enter Fab Two







Now we enter the Clean Room Two manufacturing area. This 1,500 square foot clean room was constructed in 1996 using all the latest materials and technologies. It has a full ULPA Filter ceiling (.12um particle retention) and every bell and whistle a first class clean room can have.

In this set of clean rooms we change the air 390 times per hour, if you do the math with ULPA filtration this is a Class One facility (at rest, FED-209E Class One). We run it as a Class 10 / ISO 3, even though it consistently runs well below Class 10 / ISO 3.

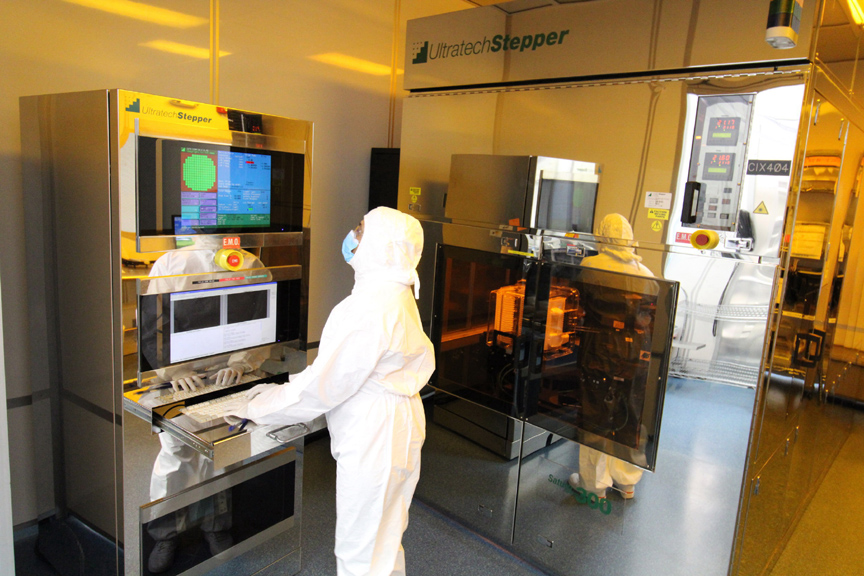

.35um Stepping Services







Here in the Clean Room Two Photolithography area we see one of our 200mm I-Line Steppers and a 200mm spin tool.











The World's First true 300mm production furnace

Our development and design of this tool began in 1992, it was installed in December of 1995 and became fully operational in January of 1996. In February of 1997 we installed our second true 300mm production furnace tool. Since then our 300mm diffusion tools have processed more 300mm wafers through custom Thermal Oxide, Poly Silicon and Silicon Nitride thin film services, than any other tools of their kind in the World.







The unloading of 300mm wafers after oxidation

 We commonly see uniformities of 1% or less across the wafers (furnace prime), as well as no detectable flatness changes or diffusion related slip has been found on our 300mm Oxidized wafers.

300mm Nitride deposition





Process Specialties developed the world's first production 300mm Nitride system! We began processing 300mm LPCVD Silicon Nitride in May of 1997. Since then we have processed over 200,000 wafers through the 300mm Nitride deposition system(s).







Currently in our PS300A and PS300B diffusion tools we are running Thermal Oxide Systems, Polysilicon and LPCVD Nitride systems for 300mm wafers. This means we can out produce any of our competitors on these key thin films. This translates into faster 300mm turn times for our customers.

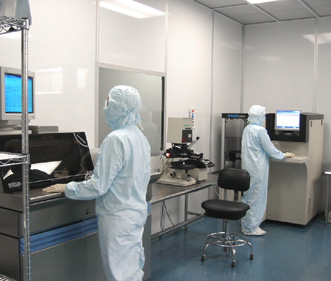

Accuracy in metrology is never an issue

At Process Specialties. We use advanced robotic laser ellipsometers and other calibrated tools for precision thin film, resistivity, CD and step height measurement.

In 2005 with the introduction of our New Calibration Standards product line PSI Standards, our thin films truly are the industry standard. The PSI Standards Laboratory is ISO/IEC 17025 Accredited through NVLAP, Lab code 200669-0.


In this clean room we have an additional 2,100 square feet of Class 10 / ISO 3 Clean room space.

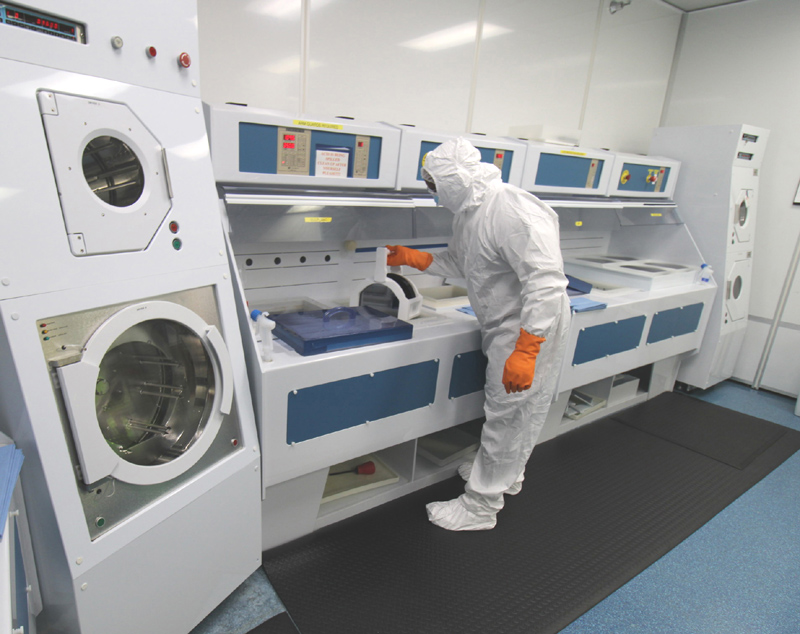

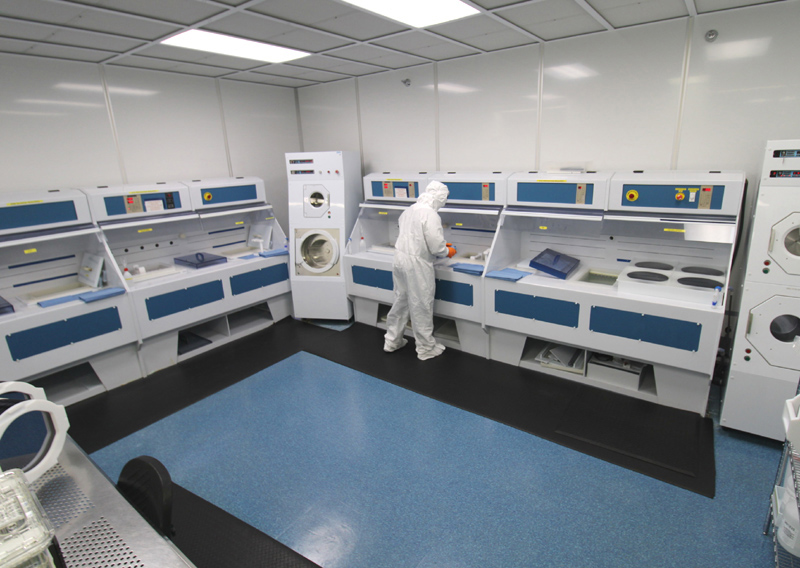

Opened in 2001 this clean room area has increased our 300mm & 200mm processing capabilities including more PVD Metalization, 300mm Wet processing and 300mm stepped Photolithography, all in a Class 10 environment. In 2013 Process Specialties continues to have more "in-house" 300mm processing capacity than nearly all of its competitors. This translates into Faster Turn Times for our customers custom processing orders.



Views of the Clean Room Three Lithography area

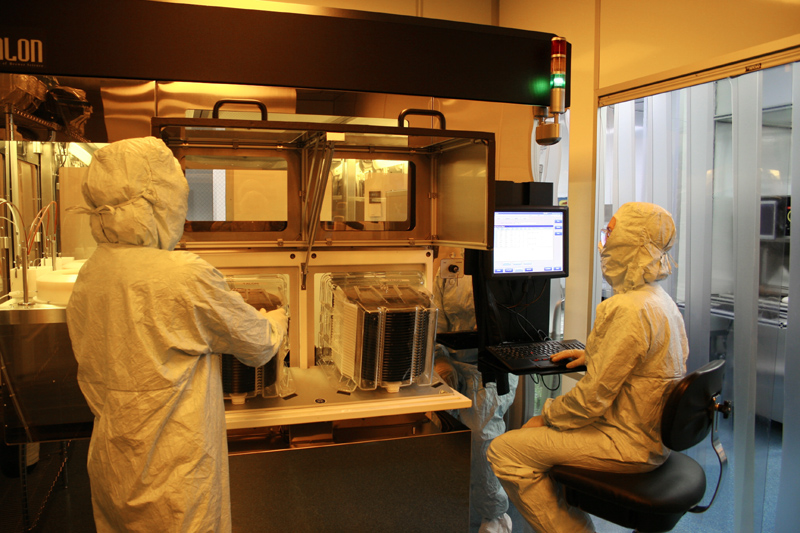

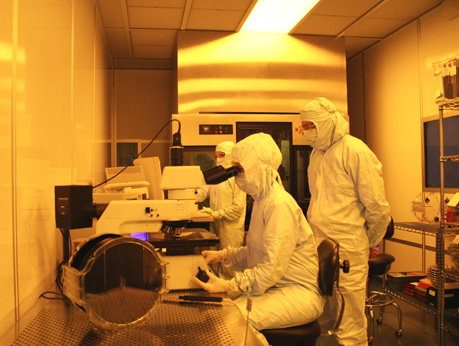

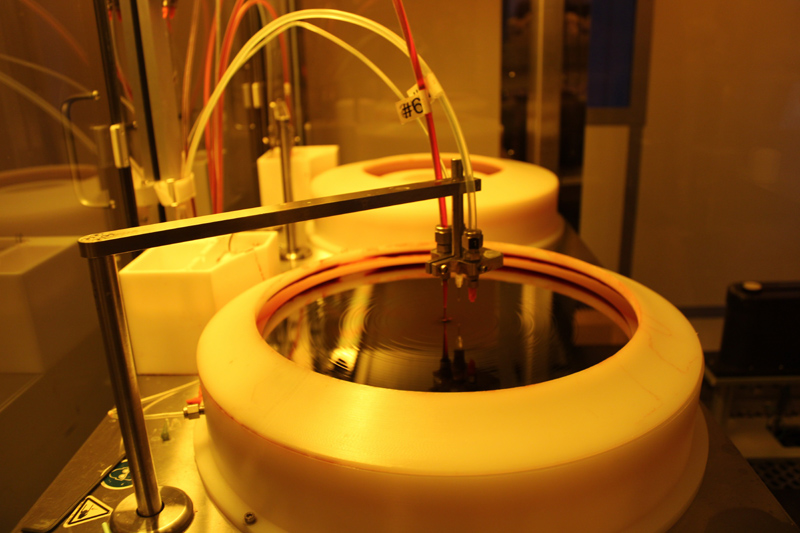

In this area we have a 300mm I-Line stepper, 300mm resist track, and a 300mm wafer inspection system









Two of our 300mm metal tools in the Clean room 3 PVD area. These tools are also capable of processing 150mm and 200mm wafers.

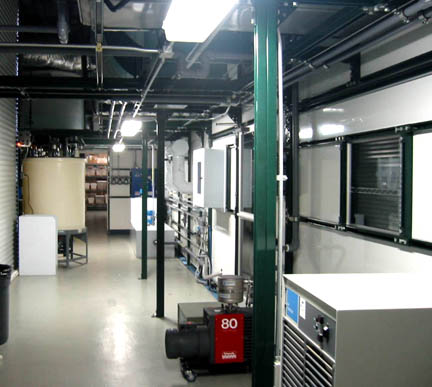

Last a view of the rear facilities area of Clean Room Three. Here you can see the waste water treatment system, DI water system and other support equipment for the Clean room.

Remember, to get a complete tour of this facility you must visit Process Specialties in person. This public tour just shows some of the highlights of our Fab areas, just enough to make our remote customers who don't have a chance to visit, feel comfortable in knowing their wafers are being processed in a cleanFirst Class facility.

To arrange a tour of Process Specialties, call PSI customer service @ 1.800.533.8820 Toll Free in USA

Note: To visit us, your company must be a current customer of Process Specialties, Inc.
